GRAFCET Studio Pro stands for “GRAphe Fonctionnel de Commande Etapes / Transitions” and means “Transition Functional Chart”.
GRAFCET is a European standard (DIN EN 60848), which is commonly used to describe a control function or machine, in other words, a method for displaying the analysis of automation.
helps you be able to ensure the best possible working relationships between different working groups.
Designer GRAFCET engineer and the mechanical engineer can use it to build the requested machine. Then a PLC expert writes the program for that machine, and in the next step the startup engineer will be able to prepare the machine for commissioning.
Although theoretically, PLC programming for GRAFCET is produced for the layout, but in many cases the program that is written does not work well and is not synchronized with the GRAFCET design.
GRAFCET Studio has fixed this issue. This software provides an environment for GRAFCET design and auto-mapping to the PLC program. In other words, using this software you will be able to simulate GRAFCET on your computer.

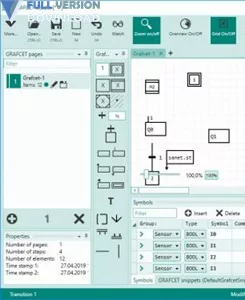

Here are some key features of “GrafCet Studio Pro v1.0.3.4”:
- GRAFCET design in accordance with standards
- Clear and easy interface
- Simulation of a GRAFCET on a computer
- Automatic GRAFCET conversion to a PLC program
- Reducing the time required for PLC programming
- Describing GRAFCET
